产品名称： 沟槽式蝶阀（XD81/381X） 产品简介： |
阀门材料清单Materials List
| 编号No. | 零件名称Name | 材料 | 国际标准GB |
| 1 | 阀体Body | 球墨铸铁Iron | QT450-10 |
| 2 | 阀板Plate | 球墨铸铁Iron | QT450-10 |
| 3 | 橡胶Rubber | EPDM | |
| 4 | 轴Axis | 碳钢Carbon Steel | |
| 5 | 轴Axis | ||
| 6 | O形圈O-ring | 丁腈NBR | |
| 7 | 定位齿轮Positioning Gear | 碳钢Carbon Steel | 45# |
| 8 | 手柄Handle | 玛钢Malleable |

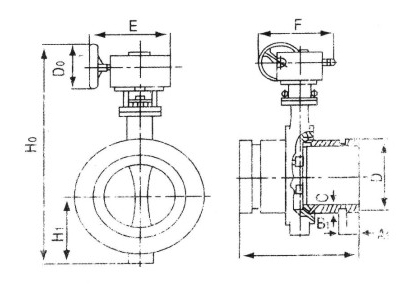

阀门外形尺寸，连接尺寸和重量Overall&Connection Dimensions&Weight of Butterfly Valve
| 规格尺寸Size | A | B | C | D | E | F | |
| DN | IN | ||||||
| 50 | 2" | 92 | 60 | 8 | 16 | 100 | 53 |
| 65 | 2.5" | 102 | 76 | 8 | 16 | 108 | 61 |
| 80 | 3" | 102 | 89 | 8 | 16 | 114 | 68 |
| 100 | 4" | 116 | 114 | 10 | 16 | 136 | 85 |
| 125 | 5" | 125 | 141 | 10 | 16 | 162 | 99 |
| 150 | 6" | 125 | 165 | 10 | 16 | 174 | 111 |
| 200 | 8" | 138 | 219 | 11 | 19 | 230 | 145 |
